USED PLASTIC PROCESSING MACHINES

Top Seller

We source and supply used Thermoforming machine, Vacuumforming machine and Automatic blister forming machine from Europe.

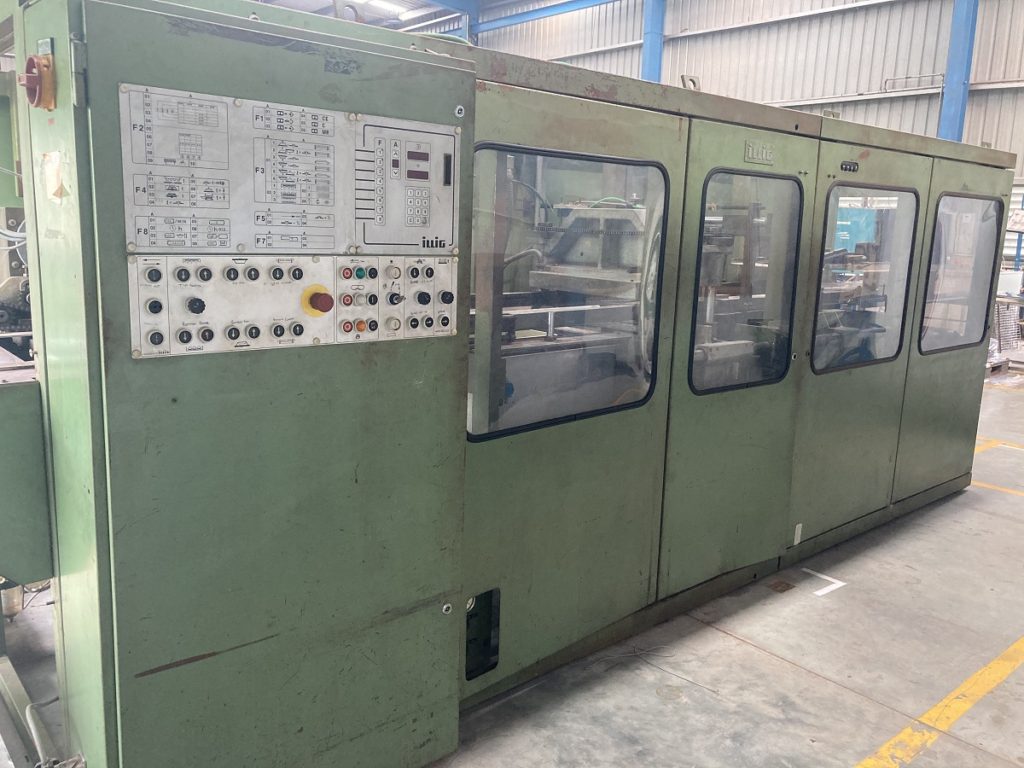

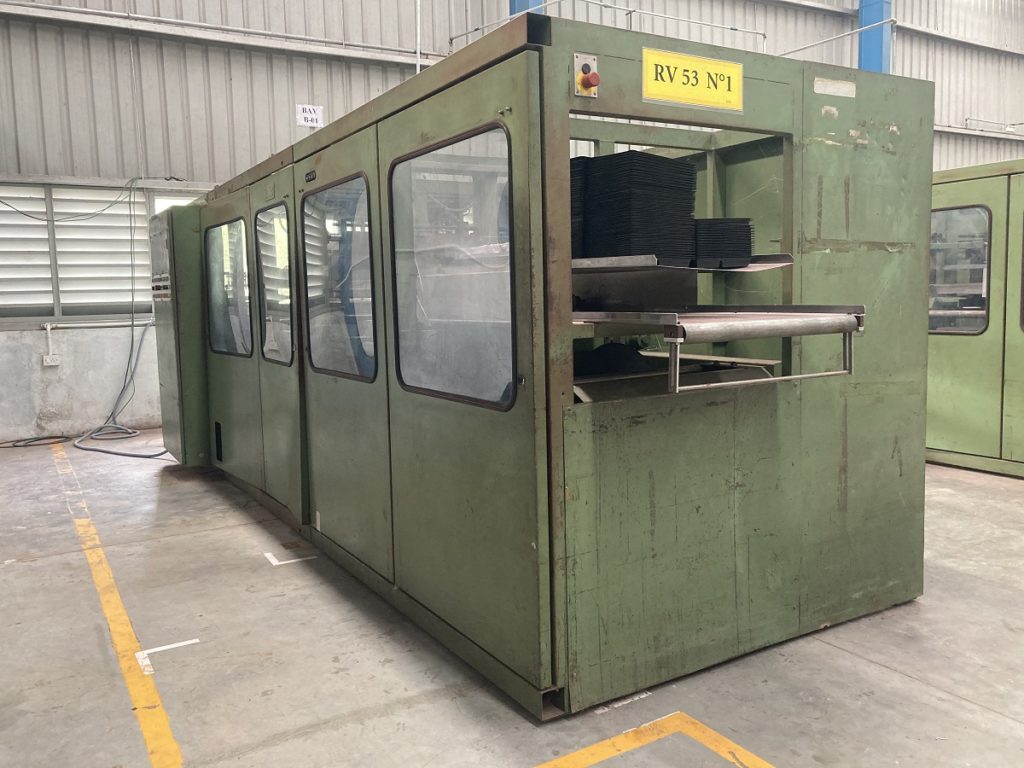

Make : illig, Germany

Model : RV 53

Year : 1998

Autom. Thermoformer
Actual forming area	max.350x500mm
Actual forming area	min. 100×300 mm
Height of forming above working level	max. 100 mm
Height of forming below working level	max. 30 mm
Width of material	max./min. 540/340 mm
Connected load of upper heating	9.8kW
Connected load of lower heating	5.6kW
Suction capacity of vacuum pump	40m3/h
Consumption of cooling water with open-circuit water cooling	approx. 0.7 m3/h
Steel rule punch press,
Punching area on upper table	max.350x500mm
Punching area on lower table	max.335x500mm
Punching pressure	200kN
Height of forming above working level	max.100mm
Height of forming below working level (movable lower table)	max.30mm
Height of cutting steel on upper table	min./max. 80/100 mm
Height of cutting steel on lower table	max.50mm
Connected load of heating of steel rule die	4kW
Temperature of heating plate on upper table	max.150°C
Complete machine (Thermoformer and steel rule punch press)
Number of cycles	min./max. 20
Total connected load with upper and lower heating and heating of steel rule die	23.3 kW
Total air consumption/cycle with max. stroke length	45 NL
Operating pressure	min. 6 bar
Total height	2,050 mm
Weight of machine	3000 kg
